Pull Requests

What is the Pull Requests View?

The PRs tab is ADE’s GitHub-connected PR management interface: every PR across every lane, with CI status, review state, and merge readiness visible without leaving the app. Each lane maps to at most one PR, and that link is surfaced in the Lanes view, the Workspace Graph, and the History timeline.

Lane-to-PR Mapping

Each lane maps to exactly one PR. Creating a PR from a lane links them permanently — lane context pre-fills the PR form automatically.

Stacked PR Support

ADE manages the full lifecycle of stacked PRs: creates them targeting the right branches, rebases them when a parent merges, and merges the stack in the correct order.

Pre-Merge Simulation

Run an on-demand integration simulation before merging — ADE shows predicted conflicts, affected files, and risk level for the specific PR being merged.

Lane-to-PR Mapping

Every lane can have at most one associated PR at any time. The mapping is created when you open a PR from a lane and persists until the PR is closed or merged.

Lane State	PR Badge Shown
No PR created yet	”Create PR” button
Draft PR open	`Draft` badge (grey)
PR open, no review	`Open` badge (blue)
PR approved	`Approved` badge (green)
Changes requested	`Changes Requested` badge (amber)
PR merged	`Merged` badge (purple)
PR closed (unmerged)	`Closed` badge (red)

The PR status badge is visible in the lane list (left pane of the Lanes tab), the Workspace Graph (as a label on the lane node), and the PR detail view itself.

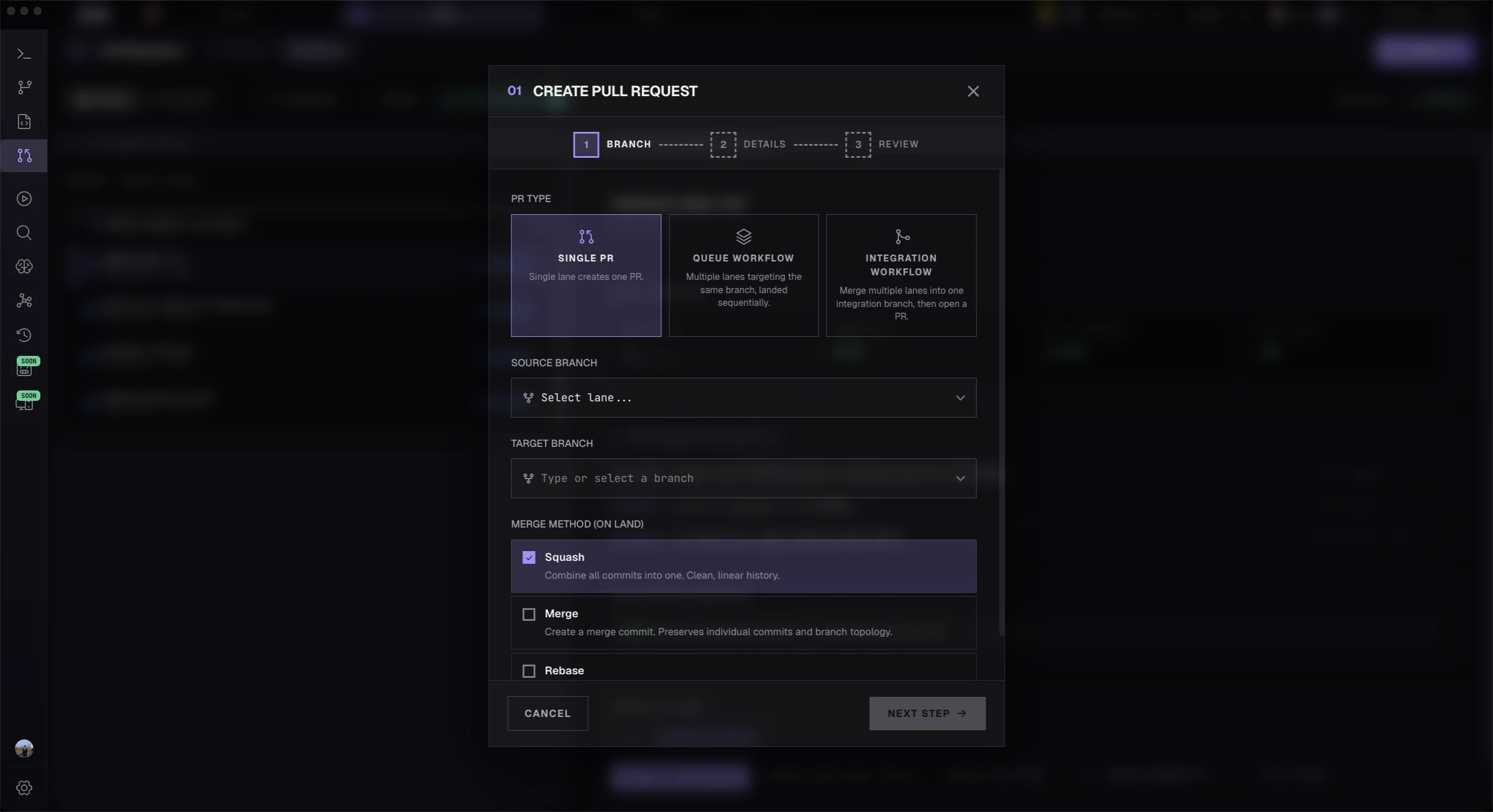

Creating a PR from a Lane

Open the lane's PR action

In the Lanes tab, select the lane you want to create a PR for. In the right inspector’s PR sub-tab, click Create PR. Alternatively, click the Create PR button in the lane list row’s action menu (⋮).

Review the pre-filled form

ADE pre-fills the PR creation form with context sourced from the lane:

Title — generated from the lane’s intent (from its Lane Pack)
Description — the lane’s intent, acceptance criteria, and diff summary, formatted as markdown. If your repository has a .github/pull_request_template.md, the template is prepended and the Lane Pack content is appended below it.
Base branch — the lane’s base branch. For stacked lanes, this is automatically set to the parent lane’s branch (not main).
Reviewers — any reviewers configured in the lane settings or in .ade/ade.yaml
Labels — labels mapped to the lane’s associated Linear issue (if connected)

Toggle draft mode if needed

If the work is not ready for review, enable the Draft PR toggle. Draft PRs are tracked by ADE but will not be auto-merged even if CI passes and all reviews are complete. Draft mode can be toggled per-lane in lane settings.

Submit the PR

Click Create Pull Request. ADE calls the GitHub API, creates the PR, and immediately links it to the lane. The lane’s PR badge updates to reflect the new state.

Stacked PRs

ADE has first-class support for stacked PR workflows, where a series of lanes build on each other and their PRs target each other (rather than all targeting main).

How Stacked PRs Are Structured

When a lane is stacked (its base branch is another lane’s branch), ADE automatically targets that lane’s branch when creating a PR:

main
└── lane/auth-base         → PR #42 targets: main
    └── lane/auth-middleware   → PR #43 targets: lane/auth-base
        └── lane/auth-endpoints  → PR #44 targets: lane/auth-middleware

This allows reviewers to review each layer of changes in isolation, without the noise of all changes combined.

When a Parent PR Merges

When PR #42 (lane/auth-base → main) is merged:

ADE detects the merge event via GitHub webhook / polling
ADE automatically rebases lane/auth-middleware onto main (since its parent has now landed on main)
The target branch of PR #43 is updated from lane/auth-base to main
If the rebase encounters conflicts, the affected lane enters conflict status and the rebase pauses for manual resolution
The process repeats for each subsequent lane in the stack

The automatic rebase on parent merge is enabled by default. You can disable it per-stack in .ade/ade.yaml under stacks.auto_rebase_on_parent_merge: false if you prefer to handle rebase timing manually.

Stack Management

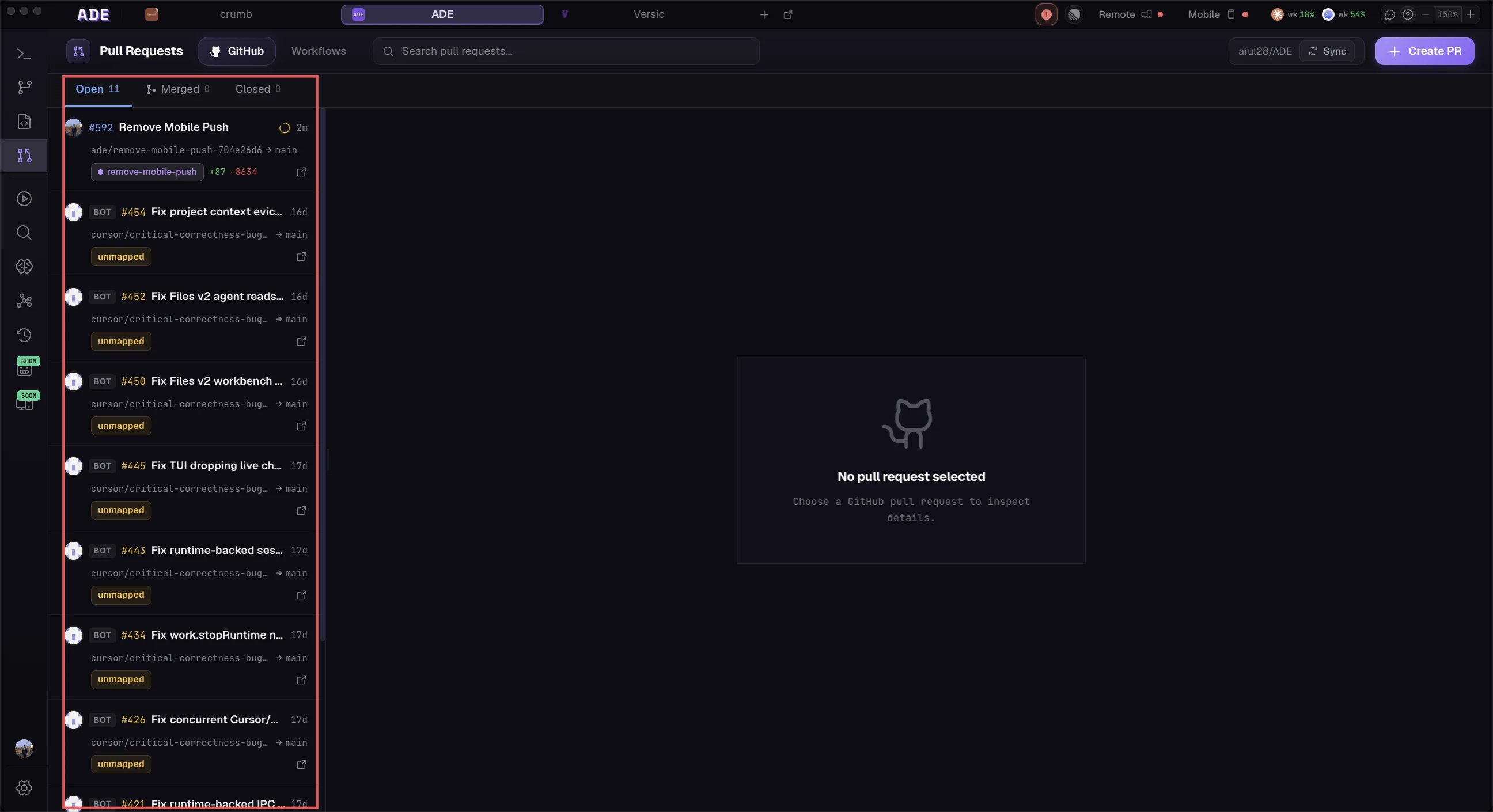

The PR list displays stacked PRs with indentation and dependency arrows. The stack header row shows:

Total PRs in the stack
Number approved / pending / failing CI
Merge Stack button (enabled when the bottom PR is ready to merge)

PR Detail View

Select any PR in the list to open its full detail in the right panel. The detail view has five tabs.

Overview
Files Changed
Comments
Timeline
Simulation

The Overview tab shows the full PR summary:

Title and description — rendered markdown, with edit button (requires GitHub auth)
Status badges — PR state, draft indicator, merge readiness score
CI checks — all GitHub Actions checks with their current status (passing, failing, pending, skipped). Click any check to see its log output in an inline log viewer.
Reviewers — reviewer avatars with approval/changes-requested/pending state
Assignees and labels
Base branch and head branch
Creation date and last updated timestamp
Conflict Risk badge — the latest integration simulation result for this PR

If CI is failing, ADE highlights the failing check and offers an “Ask CTO about this failure” button. This routes to the CTO chat with the CI log pre-loaded as context, so you can ask what went wrong and how to fix it without manually reading the log.

A full diff viewer showing every file changed in this PR:

Syntax-highlighted diffs with line numbers
File tree sidebar for navigation (click any file name to jump to its diff)
Filter controls: “Show additions only”, “Show deletions only”, “Hide whitespace changes”
Expand/collapse individual file diffs
Jump to a specific file using Cmd+P to open the file picker
Line-level commenting: click any line number to open an inline comment draft (requires GitHub auth)

The on-demand integration simulation tab. Distinct from the continuous background conflict prediction — this is an explicit, targeted simulation for this PR’s specific merge.Click Run Simulation to trigger git merge-tree for this PR’s source → target merge. Results show:

Risk level — Green / Yellow / Orange / Red
Files affected — list of files that would be touched by the merge
Predicted conflicts — any hunks that would conflict, with both sides shown
Simulation timestamp — when the simulation was last run

Simulations are automatically re-run when the PR’s head branch receives a new commit.

PR Actions

All PR actions are available from the detail view’s action bar at the top of the right panel.

Update PR Description

Pulls fresh context from the lane’s current Lane Pack and regenerates the PR description. Useful after significant new commits have landed on the lane. ADE shows you a diff of what changed in the description before submitting the update.

Request Review

Opens the reviewer picker. Search by GitHub username or team name. ADE suggests reviewers based on code ownership (from CODEOWNERS if present) and previous review history for the affected files.

Approve / Submit Review

If you are listed as a requested reviewer, the Approve and Request Changes buttons are active. Submit an optional review comment with either action.

Mark as Ready

Converts a draft PR to a ready-for-review PR. ADE sends a Slack / Linear notification to configured channels (if integrations are enabled) when a PR moves from draft to ready.

Merge PR

Opens the merge dialog. Select merge strategy (see Merge Strategies below), optionally edit the merge commit message, and confirm. ADE calls the GitHub merge API and waits for the merge to complete before updating the UI.

Close / Reopen PR

Closes the PR without merging (does not delete the branch). Reopen is available for closed (not merged) PRs.

CI/CD Integration

ADE polls GitHub Actions for CI status on all linked PRs. The CI check list is visible in the PR Overview tab and as an icon badge on the PR list entry.

Reading CI Status

Icon	Status	Meaning
Green checkmark	`success`	Check passed
Red X	`failure`	Check failed
Yellow spinner	`pending`	Check is running
Grey dash	`skipped`	Check was skipped
Orange exclamation	`action_required`	Manual action needed

Viewing CI Logs

Click any check name to expand its log output inline in the Overview tab. Logs are syntax-highlighted for common CI output formats (Go test output, Jest, pytest, etc.). Use Cmd+F inside the log viewer to search for specific error text.

CI Failure Assistance

When any required check fails, a “Ask CTO about this failure” button appears below the failing check. Clicking it:

Opens the CTO chat panel
Pre-loads the failing check’s log output as context
Pre-fills the message: “CI is failing on PR #[N] in the [check-name] step. Here’s the log: […]”

The CTO agent reads the log, identifies the root cause, and proposes a fix — either as inline suggestions or by creating a new agent session in the PR’s lane.

Merge Strategies

ADE supports all three GitHub merge strategies. Select the strategy in the merge dialog.

Strategy	Description	When to use
Merge commit	Creates a merge commit with all individual commits	When you want the full commit history preserved
Squash and merge	Squashes all commits into one before merging	When individual commits are noisy and you want a clean history
Rebase and merge	Replays commits linearly onto the base branch	When you want linear history without a merge commit

For stacked PR workflows, ADE enforces the same merge strategy across the entire stack. This prevents history fragmentation when a stack of PRs is merged in sequence. Set the stack-level strategy in .ade/ade.yaml under stacks.merge_strategy.

Stack Merge Workflow

The Merge Stack feature merges all PRs in a stack from bottom to top in the correct order, automatically rebasing each subsequent PR after the previous one lands.

Verify stack readiness

In the PR list, open the stack header row. The readiness summary shows how many PRs in the stack are approved and CI-passing. All PRs must be in a mergeable state before the stack merge can proceed.

Click 'Merge Stack'

The Merge Stack button is enabled when all PRs in the stack are approved and all required CI checks have passed. Click it to open the Stack Merge dialog.

Review the merge order

The dialog shows the planned merge order (bottom-up) and the merge strategy to be used. Review and confirm.

Monitor the merge sequence

ADE merges PR #1 (the bottom of the stack), then immediately rebases PR #2 onto main and updates its target branch, then merges PR #2, and so on. A progress indicator tracks each step.If a merge step fails (e.g., because the rebase encountered a conflict), the process pauses and surfaces the conflict for resolution. After you resolve it, click Resume Stack Merge to continue.

The Stack Merge operation calls the GitHub API sequentially for each PR. If your CI requires a final check after each rebase (which is common), the process will wait for CI to pass on the rebased PR before proceeding to the next merge. This can take several minutes per PR in a large stack. Monitor the progress indicator — you do not need to stay in the PRs tab while this runs.

Draft PRs

Lanes created with “draft” mode produce draft PRs. Draft mode can be set:

At lane creation time (in the New Lane dialog, under Advanced)
After creation, in the Lane Settings (kebab menu ⋮ > Settings > PR Settings > Draft mode)
Per-project default in .ade/ade.yaml:

# .ade/ade.yaml
prs:
  default_draft: true   # all new PRs start as drafts

ADE will not auto-merge a draft PR even if CI passes and all required reviews are approved. You must explicitly mark it as ready (via the Mark as Ready action) before a merge is possible.

PR Templates

ADE respects .github/pull_request_template.md if present in your repository. When generating a PR description, ADE:

Loads the template content
Appends the lane’s intent and acceptance criteria (from the Lane Pack) below the template
Fills in any template sections it can infer (e.g., “Type of change” checkboxes based on the diff)

If you have multiple PR templates (in .github/PULL_REQUEST_TEMPLATE/), ADE presents a dropdown to select which template to use when creating the PR.

Troubleshooting

Merge is blocked — 'Base branch is not up to date'

GitHub requires the PR branch to be up to date with its base branch before merging (when branch protection rules require this). In the PR Overview, click Update Branch — ADE will rebase or merge the base branch into your PR branch. If conflicts arise during the update, the lane enters conflict status and the Conflicts tab shows the details.

Stale PR — description doesn't reflect recent commits

The PR description was generated from an earlier Lane Pack. Click Update PR Description in the action bar — ADE regenerates the description from the current Lane Pack state. Review the diff in the preview before submitting the update to GitHub.

CI is failing but the code looks correct

Use the “Ask CTO about this failure” button in the PR Overview to route the CI log to the CTO agent. Common causes ADE’s CTO agent detects: missing environment variable in CI, test file not updated after a function rename, outdated snapshot, or a flaky test. The CTO agent will propose a fix.

Stack Merge paused mid-sequence

If a conflict arises during a stack merge rebase, the process pauses. The Conflicts tab will show the conflict. Resolve it using the standard conflict workflow, then return to the PRs tab and click Resume Stack Merge. The sequence picks up from the point it paused — it does not restart from the beginning.

Lane and PR are out of sync

If the underlying GitHub PR was merged or closed directly on GitHub (not through ADE), ADE will detect the state change on the next poll cycle (within 2 minutes) and update the lane badge accordingly. If the sync seems stuck, click the Refresh icon in the PR detail header to force an immediate re-fetch from the GitHub API.

Cannot post comments — authentication error

Posting comments and submitting reviews requires a GitHub personal access token with pull_requests: write scope, or a GitHub App installation. Configure GitHub authentication in Settings > Integrations > GitHub. Read-only PR viewing (status, diffs, CI) works with a read-only token or the public GitHub API.

Path to Merge

The Path to Merge tab is a dedicated convergence workspace inside every PR detail view. It provides a complete loop for resolving all outstanding issues — review comments, CI failures, and merge conflicts — until the PR is ready to land.

The Path to Merge tab appears alongside Overview, Files, CI/Checks, and Activity in the PR detail pane. A count badge on the tab shows how many new issues need attention.

Issue Inventory

ADE automatically scans the PR and builds an issue inventory — a structured list of every item blocking merge readiness:

Source	Detection
Review comments	GitHub review threads requesting changes
CI check failures	Any required check that is not passing
Bot reviews	Comments from review bots are auto-detected from the `[bot]` suffix on GitHub usernames — CodeRabbit, Copilot, Codex, Greptile, Seer, and any future GitHub App review bot are recognized without configuration
ADE PR issue resolver	ADE’s built-in issue resolver proactively detects and proposes fixes for common PR problems (missing tests, type errors, lint failures) before you run a full convergence round

Each item in the inventory has:

State: new, sent_to_agent, fixed, dismissed, or escalated
Severity: critical, major, or minor (extracted from the issue body)
Headline: A compact display title extracted from the first line or bold text
Source attribution: Whether the issue came from a human reviewer, CodeRabbit, Copilot, Codex, or ADE itself

The inventory panel groups issues by state, with escalated items shown first.

Manual Convergence

In Manual mode, you control each resolution round:

Review the issue inventory

Open the Path to Merge tab. The panel shows all outstanding issues grouped by state (new, in progress, fixed, dismissed, escalated).

Configure the round

Optionally type additional instructions in the text area (e.g., “Focus on the performance feedback first”). Select the AI model, reasoning effort, and permission mode (Read-Only / Guarded Edit / Full Edit).

Run Next Round

Click Run Next Round. ADE launches an agent session scoped to the PR’s lane with all new issues pre-loaded as context. The agent reads each issue, makes fixes, and commits them.

Review results

When the round completes, return to the panel. Issues the agent resolved move to Fixed. New issues that appeared (from fresh CI runs or new reviewer comments) appear as New. Repeat until all issues are resolved.

You can also dismiss issues you consider non-actionable, or escalate issues that need human attention, directly from the inventory panel.

Auto-Converge Mode

Toggle Auto-Converge to let ADE run the full convergence loop autonomously:

Agent round — ADE launches a resolution round with all new issues
Wait for CI — After the agent commits, ADE polls GitHub for check completion (~60s intervals)
Wait for comments — Once checks finish, ADE polls for new review comments, requiring 2 stable polls before proceeding
Decision gate — If new issues appeared: launch the next round. If no new issues: mark convergence as complete
Auto-merge (optional) — If autoMerge is enabled in pipeline settings and convergence is complete, ADE merges the PR automatically

The auto-converge poller handles edge cases:

Rebase needed: If the PR is behind its base branch, behavior depends on the onRebaseNeeded setting (auto_rebase or pause)
Max rounds reached: Pauses and notifies you instead of running indefinitely
Agent still running: Shows a “Agent working on round N…” banner with a link to view the active session

You can switch between Manual and Auto-Converge at any time — the issue inventory and round history are preserved across mode changes.

Pipeline Settings

Configure convergence behavior per-PR from the Path to Merge panel, or set project-wide defaults in .ade/ade.yaml:

# .ade/ade.yaml
prs:
  convergence:
    autoMerge: false              # auto-merge when convergence completes
    mergeMethod: "repo_default"   # merge | squash | rebase | repo_default
    maxRounds: 5                  # max AI resolution rounds (1–20)
    onRebaseNeeded: "pause"       # pause | auto_rebase

Setting	Default	Description
`autoMerge`	`false`	Merge the PR automatically when all issues are resolved and checks pass
`mergeMethod`	`repo_default`	Which GitHub merge strategy to use. `repo_default` uses whatever the repository allows
`maxRounds`	`5`	Maximum convergence rounds before auto-converge pauses (1–20)
`onRebaseNeeded`	`pause`	What to do when the PR branch is behind: `pause` stops and asks you; `auto_rebase` rebases automatically

CTO Operator Tools

The CTO agent can drive PR convergence programmatically using five dedicated tools:

Tool	Description
`getPullRequestConvergence`	Read the full convergence state: issue inventory, runtime, pipeline settings
`updatePullRequestConvergencePipeline`	Edit pipeline settings (autoMerge, mergeMethod, maxRounds, onRebaseNeeded)
`updatePullRequestConvergenceRuntime`	Directly set runtime state (status, poller, active session)
`startPullRequestConvergenceRound`	Launch the next convergence round with a specific model, scope, and instructions
`stopPullRequestConvergence`	Stop an active convergence run and interrupt the running session

This allows the CTO to autonomously monitor PRs, start convergence when review comments arrive, and stop rounds that are no longer productive — all without human intervention.

Configuration reference

Key PR-related settings in .ade/ade.yaml:

# .ade/ade.yaml
prs:
  default_draft: false           # start new PRs as drafts by default
  auto_update_description: true  # regenerate PR description on each new commit
  template: ".github/pull_request_template.md"  # override template path

stacks:
  auto_rebase_on_parent_merge: true  # rebase child lanes when parent PR merges
  merge_strategy: squash             # merge | squash | rebase (for entire stack)

conflicts:
  block_merge_on_simulation_failure: true  # prevent merge if simulation shows Red risk

What’s Next

Conflicts

Understand how integration simulations relate to the continuous conflict prediction engine.

Lanes

Learn how stacked lane relationships drive the stacked PR workflow automatically.

History

See every PR event — reviews, CI changes, merges — in the project operations timeline.

CTO Agent

Let the CTO agent monitor PR CI health, triage failures, and delegate fixes to worker agents.

Run

Lanes

Agent Chat

Terminals

Files

Graph

Pull Requests

History

Automations

Missions

CTO Agent

Documentation Index

​What is the Pull Requests View?

Lane-to-PR Mapping

Stacked PR Support

Pre-Merge Simulation

​Lane-to-PR Mapping

​Creating a PR from a Lane

​Stacked PRs

​How Stacked PRs Are Structured

​When a Parent PR Merges

​Stack Management

​PR Detail View

​PR Actions

​CI/CD Integration

​Reading CI Status

​Viewing CI Logs

​CI Failure Assistance

​Merge Strategies

​Stack Merge Workflow

​Draft PRs

​PR Templates

​Troubleshooting

​Path to Merge

​Issue Inventory

​Manual Convergence

​Auto-Converge Mode

​Pipeline Settings

​CTO Operator Tools

​Configuration reference

​What’s Next

Conflicts

Lanes

History

CTO Agent

What is the Pull Requests View?

Lane-to-PR Mapping

Creating a PR from a Lane

Stacked PRs

How Stacked PRs Are Structured

When a Parent PR Merges

Stack Management

PR Detail View

PR Actions

CI/CD Integration

Reading CI Status

Viewing CI Logs

CI Failure Assistance

Merge Strategies

Stack Merge Workflow

Draft PRs

PR Templates

Troubleshooting

Path to Merge

Issue Inventory

Manual Convergence

Auto-Converge Mode

Pipeline Settings

CTO Operator Tools

Configuration reference

What’s Next
